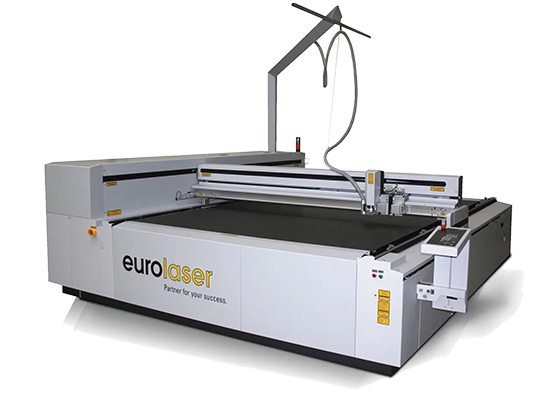

XL Laser Cutter

The ideal cutting machine for big sizes in high quality

  • PICTUREplus - Raster Engraving Unit
  • Exhaust and filter units
  • Cooling units

System characteristics

Shuttle Table System

Doubling your productivity

This enables loading and unloading of the machining table during laser machining and demonstrably delivers an increase in efficiency of up to 75% when using a laser system.

With the Shuttle table System the efficiency of the eurolaser systems can be further increased. Loading and unloading can take place during the processing, further the already processed work pieces can easily be reached and unloaded.

  • Loading and unloading during cutting process - increased system duty
  • Easier accessibility of the pieces produced by moving the material support
  • Increasing efficiency by minimising downtime
  • Easy handling
  • Automatic table shift after cutting process possible
  • System is not encapsulated - Robot assembly possible (24/7 - operation)
  • New material is located on the top shuttle table - thereby no material remaining is falling on the new material
Shuttle Table System

Remote Operation

The alternating operation for a better system duty

The software-controlled division of the work area allows laser system operation on alternate sides. This enables production to be continued on the opposite side while removing and reloading material.

Eurolaser customers could compete themselves on the market because of the availability, functionality, flexibility of the systems. Since several years eurolaser has provided the possibility of splitting the processing table into two areas: The "Remote Operation" option.

The advantage is to cut or engrave the placed material in the front area, while you unload the finished pieces and reload directly on the rear table surface. The laser changes automatically between the two processing areas, thus having the system in operation almost 100 per cent.

Available for M-1600, L-1200, L-3200, XL-1600, XL-3200, 2XL-3200 and 3XL-3200.

Remote Operation

Optional extras

POSITIONplus - Optical Recognition System

Optical Recognition System - Always in the focus

Automatic camera detection enables printed materials to be cut out precisely along the printed outline. Even copying tolerances in the printed format can be compensated by software control.

Many applications require an accurate cutting oriented to existing fiducial marks or other material references. As a respond to this need eurolaser offers an intelligent solution consisting of a camera and analysis software.

POSITIONplus - Optical Recognition System

Mechanical Machining

3 IN 1 - Use the best range of tools in parallel to the laser!

Mechanical tool heads can be installed parallel to the laser, giving you the option to use tools such as milling cutters or knives. A valuable extension to your machining options with just one system technology.

Use the laser plus two mechanical tools in parallel on one machine. The entire high-quality range of Zünd tools is available for you. Extend your machining and material options without expensive additional investments.


Mechanical Machining

PICTUREplus - Raster Engraving Unit

Big, bigger, engraving up to 10m2

This optional equipment allows machining of image files and production of both 2D-images and 3D-reliefs. Engraving is possible with a resolution of up to 1200 dpi and in 256 shades of grey.

Pictures, logos, labels and much more - engraving and marking on various material surfaces.
This is an impressive option!

PICTUREplus - Raster Engraving Unit

Ink Marker Module

Contact-free ink-jet marking

The compressed air controlled jet system applies ink markings to the material.

The demand for simple, economical and contact-free marking methods is growing continuously, particularly for sewing markings (clippings) in the textile manufacturing branch.

The new Ink Marker Module – an extra option that can be retrofitted - is now available for our laser cutting systems.

  • No distortion thanks to contact-free marking
  • Quick drying ink, indelible
  • High degree of marking accuracy
  • Faster than using plotter pens
  • Longer lifetime than felt pens
  • Different inks / colours can be used
  • Complete retrofit kit available
Ink Marker Module

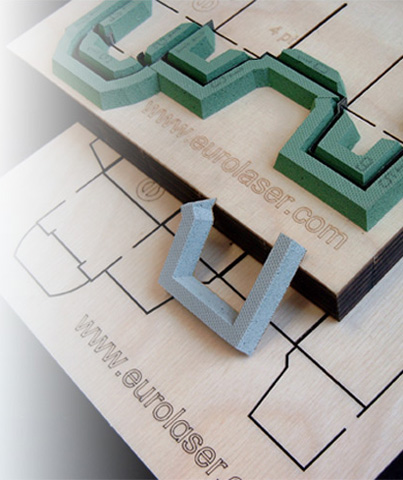

Dieboard processing possible

Eurolaser has laser cutters that are specifically configured for the packaging industry

Cut with constantly high accuracy from 1 pt to 6 pts. Focus your cutting with the box cut process. At the same time, less material vaporizes, which means fewer emissions and therefore more costeffective extraction and filter systems.

The outstanding features of laser cutting are high quality and flexibility. Precision is the crucial criterion in the production of die cutters. The contactless laser cutting process is fast, accurate and produces perfect cuts. The material is vaporised, meaning that there are no chippings, which in turn minimises the amount of cleaning. In parallel to the laser, mechanical tools can be optionally installed on the system. With this you can also process ejection rubbers or create prototype packaging.

  • No crushing of the material and less breakage thanks to force-free processing
  • Box-cut processing: Cutting in focus means less material to "evaporate", fewer emissions, cheaper exhaust and filtering units
  • No chippings – so no cleaning necessary
  • Wave cutting for simulation of the pulsed operation of large lasers
  • No material fixation necessary
  • Low noise generation during cutting
  • Consistently high cutting quality because there is no tool wear
  • Cutting of “swimming lines”, to compensate canting of the knife
  • Simple integration of existing software and direct activation of cff2 and dds files
Dieboard processing possible

Exhaust and filter units

Better cutting results and protection for personnel and environment

Suction devices are selected to match your application and the table concept of your laser system. This guarantees complete emission extraction above and below the material.

The exhaust concepts ensure consistent extraction and filtering performance. They take into consideration the laser power used, the processing surface including table concept, processing speed and choice of materials to ensure you are offered the best possible coordination.

Exhaust and filter units

Cooling units

The influence the room temperature has on your production

The high-quality energy efficient cooling units are fitted with electronic temperature controllers and monitoring systems, so that they always control ideal conditions for laser beam sources, in order to guarantee constant performance.

Consistent cooling performance ensures a constant laser power which in turn provides optimum and constant cutting quality and speed. A high-quality water cooling system is therefore highly recommended for cooling a CO2 laser source.

Cooling units

XL Laser Cutter sizes

Choose from three different sizes to select the perfect machine for your application

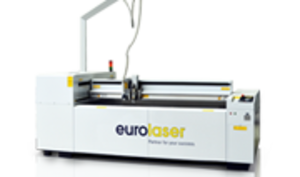

Width (in mm/in)
3690 / 145.3

Length (in mm/in)
2050 / 80.7

Height (in mm/in)
1590 / 62.6

Working area (W x L in mm/in)
2270 x 1230 / 89.3 x 48.4


Width (in mm/in)
4050 / 159.5

Length (in mm/in)
2380 / 93.7

Height (in mm/in)
1530 / 60.2

Working area (W x L in mm/in)
2270 x 1600 / 89.3 x 63

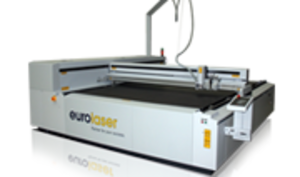

Width (in mm/in)
4020 / 158.3

Length (in mm/in)
4000 / 157.5

Height (in mm/in)
1530 / 60.2

Working area (W x L in mm/in)
2270 x 3200 / 89.3 x 126


  • Paper
  • Cardboard
  • Corrugated cardboard
  • Twin-wall sheets
  • Wood
  • Vinyl
  • Plastics
  • Rubber
  • Foam
  • Textiles
  • Leather
  • Aluminum
  • Fiber-reinforced plastics
  • Glass
  • Stone, Granite, Marble
  • Acrylic
  • Cork
  • Plywood
  • MDF
  • Polyester
  • Polycarbonate
  • PET and PET-G
  • Ceramics, Porcelain, Stoneware
